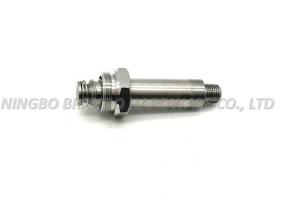

Male Screw Thread With Strong Conductivity Solenoid Valve/No Internal Spring Design Core
Product Feauture/Characteristic
| Two way Two way normally closed solenoid stem type | NO Internal spring design | Strong conductivity because material we use | Normative solenoid valve which can be replaced with the same specification kits |
| Male Screw thread Connection | Smooth and Bright Exterior | The armature is welded by three parts:upper screw thread ,armature tube and pentagon seat with thread to connect the solenoid coil and solenoid coil housing And the welded solenoid stem is solid and reliable. To avoid some unnecessary damage and destroy | External compress spring |
| Cylindrical movable core | Air exhausted vent to keep the solenoid stem safe and accuracy | NBR seal acid/alkaline media and organic solvents Good toxic-resistance and pressure-resistance | Hollow channel of movable core to keep precision and accuracy too |
Detailed Instruction/Specification of this item
| Brand | BRANDO | NO. | BAPC214037567 |
| Voltage | AC/DC | Tube out diameter | 14.0mm |
| Tube height | 37.5mm | Item weight | 71g |
| Depth | 34.6mm | Movable core height | 34.6mm |
| Color | Silvery white | Type | /2 normally closed |
| Connection | Male Thread | Pressure | Normal |
| Standard or no | Standard | Temperture | Normal |
| Material | Stainless steel | Seal | NBR |
| Application of solenoid valve | 1.Dental equipment 2.Dust collector valve 3.Automatic vending machine 4.Pulse device 5.Pneumatic equipment 6.Auto drain industry 7.Air suspension 8.Refrigeration device 9.Hyraulic industry 10.Life water and industry water supply 11.Air condition device/Air suspension valve 12.Pipe switch 13.Evr solenoid valve 14.Forged brass solenoid valve 15.Application can be customized 16.We do OEM if you need |
Solenoid stem seal choose
1.NBR
2.Viton
3.PTFE
4.EPDM
ETC
The main points of product selection
1.The main control parameters of solenoid Stem are diameter, nominal design pressure, interface size and so on.
2.Solenoid stem meet your requirement,or not
3.Ensure the correct voltage,pressure range,solenoid type and other specification
4.Ensure the Right Seal material to meet different media of liquid
Solenoid coil overviewing
