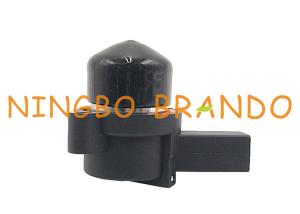

2203200104 2113200304 Air Suspension Compressor Spare Part 4Z01015200 7L0971291A Solenoid Coil
Solenoid Coil Working Principle:
By placing a solenoid valve coil over a ferromagnetic core (usually magnetic 430F stainless steel armature) the magnetic field generated causes the plunger to slide further up towards the magnetic field (into the coil) thus allowing an opening to be created. This in turn can be utilised to either to control direct acting solenoid valves, Assisted Lift Solenoid Valves or Servo/ Pressure Assisted solenoid valves.
Solenoid valve coils come in a huge range of sizes, voltages, IP protection levels, temperature ratings and power levels.
Care needs to be taken when replacing solenoid valve coils because all these factors must be considered.
Use for the following 4Z01015200 Air Suspension Compressor Pump:
2006 Mercedes-Benz CLS500 Suspension Compressor
2006 Mercedes-Benz CLS55 AMG Suspension Compressor
2007-2009 Mercedes-Benz CLS550 Suspension Compressor
2007-2009 Mercedes-Benz CLS63 AMG Suspension Compressor
2002 Mercedes-Benz E320 Suspension Compressor
2003-2009 Mercedes-Benz E320 Suspension Compressor
2006-2009 Mercedes-Benz E350 Suspension Compressor
2002-2003 Mercedes-Benz E430 Suspension Compressor
2003-2009 Mercedes-Benz E500 Suspension Compressor
2002-2006 Mercedes-Benz E55 AMG Suspension Compressor
2007-2009 Mercedes-Benz E550 Suspension Compressor
2007-2009 Mercedes-Benz E63 AMG Suspension Compressor
2000-2006 Mercedes-Benz S430 Suspension Compressor
2000-2006 Mercedes-Benz S500 Suspension Compressor
2001-2006 Mercedes-Benz S600 Suspension Compressor
Dimension of 4Z01015200 7L0971291A Solenoid Coil:
Technical Data:
| Model | 4Z01015200 |
| Hole Size | 10.0mm |
| Height | 41.7mm |
| Width | 29.0mm |
| Connector | DEUTSCH |
| Insulation Class | H |
| Protection Class | IP65, IP67, IP68 |
| Normal Voltage | DC12V |
| Power | 9W |
| Application example | Air Suspension Compressor Pump |
Details for 2203200104 2113200304 Air Suspension Compressor Spare Part:
Attention:
1. This air suspension compressor pump solenoid coil is made of high quality components.
2. Replaces the original air compressor solenoid coil of your car and equal the original quality.
3. Please double confirm the compatibility as well as the OEM number before purchasing.
4. Instruction is not included. Professional installation is recommended.
Application of 4Z01015200 7L0971291A Solenoid Coil:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
