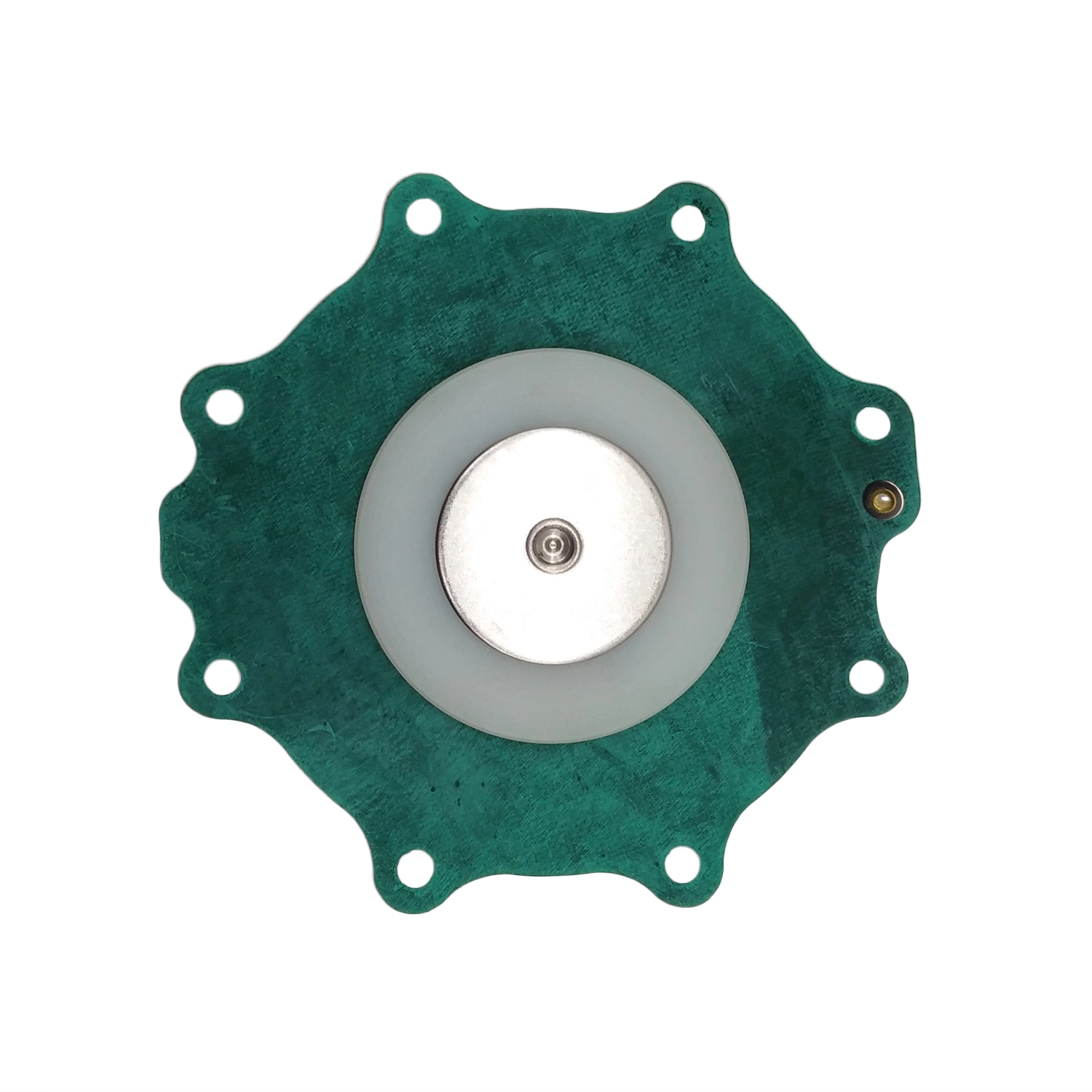

Goyen Type 1 Inch CA RCA Series Diaphragm Repair Kit K2500 M1183 K2501 M1183B K2502 M736
The gasket in the middle of the diaphragm of the pulse solenoid valve is usually iron clad rubber, and the working temperature is generally used in the normal temperature state, which is cheap, and it is generally used as a dedusting accessory. Pulse solenoid valves are mostly used in this kind of accessories. Another is to use vition gasket instead of iron-clad rubber gasket. The diaphragm cost of this kind of pulse solenoid valve is relatively high, and the general pulse solenoid valve is rarely used. Due to the special application environment, the application is not so extensive, but some environments use this kind of accessories. The diaphragm can work at a pressure of 3000 pounds, with a temperature range of (- 55 ℃ ~ 315 ℃), and can be used in corrosive media such as oily, oxidizing, alkaline, acid, etc. The diaphragm material is composed of a layer of fabric and a thin layer of elastomer attached to it. The thickness is usually (0.2 ~ 1.1mm), and the service life of the diaphragm is usually over millions of times.
Deference number:
| Material | Repair kit | Fitted Valve Model | Port Size |
| Buna/Nylon | K2000(M1204B) | CA20, RCA20, RCAC20 | 3/4'' |
| K2003(M1174B) |
| K2016 |
| K2034 |
| Buna/Buna | K2002(M764) |
| FKM | K2007(M2080B) |
| K2004(1328B) |
| K2017 |
| K2033 |
| Buna/Nylon | K2501(M1183B) | CA25, RCA25, RCAC25 | 1'' |
| K2529 |
| K2549 |
| K2531 |
| K2545 |
| K2546 |
| Buna/Buna | K2502(M736) |
| FKM | K2503(M1887) |
| K2530 |
| K2532 |
| K2551 |
| Buna/Nylon | K2500(M1183) | CA32, RCA32, CA35, RCA35, CA40, RCA40, CA45, RCA45 | 1-1/2'' |
| K3500(M1581) |
| K4000(M1182) |
| K4502(M2162) |
| Buna/Buna | K3502(M1591) |
| K4504(M2187) |
| FKM | K2503(M1887) |
| K4004(M1761) |
| K4007(M1156) |
| K4503(M2163) |
| Buna/Nylon Buna/Buna | K5004(M1638A) | CA50, RCA50, CA62, RCA62 | 2'' , 2-1/2'' |
| K5005(M1639A) |
| FKM | K5000(M1157A) |
| K5002(M1528A) |
| Buna/Nylon Buna/Buna | K7600 | CA76, RCA76 | 3'' |
| K7604 |
| K7610 |
| FKM | K7602 |
| Buna/Nylon | K10200 | CA102, RCA102 | 4'' |
| Buna/Buna | K10203 |
| FKM | K10201 |
| Buna/Nylon Buna/Buna | K8000 | CA8, RCA8 | 8'' |
| FKM | |
Dimension Diagram:
Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage
*No Lubrication
* No Breakaway Force
* No Friction
* Functionality Over Wide Pressure Ranges
* High Strength
* Low Cost
* Simple Design
* Versatility
5. EPDM, FKM all available.
All Brand Replacement
 |  |  |
| Repair CA/RA Valve | Repair SCG353A Valve | Repair DMF/MF Valve |
 |  |  |
| Repair FD/FM Valve | Repair VEM/VNP Valve | Repair JISI/SIFI Valve |
 |  |  |
| Repair Norgen Valve | Repair AE Valve | Repair TH Valve |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
